Boat yard "Flagman MK ", Ukraine. Madeira 44 yacht building

яхтенная верфь Флагман МК

Boat yard "Flagman MK " is a licensed builder of wooden sailing yachts "Madeira 44" in Kherson, Ukraine. Our boat yard has Van de Stadt's permission for producing of 9 Madeira 44 hulls. "Flagman" has all needed equipment, machinery and experienced and skilled staff to build ocean sailing yachts № 474 design "Madeira 44". The building process is performed accordingly the project documentarion vested by Van de Stadt.
    Boat yard "Flagman MK " builds the hulls of sailing yachts "Madeira 44" of mahogany (khaya) wood with out and inside epoxy GRP coating. It is possible to sell both fully completed yacht and finished hull only. The ultimate yacht's complete plant is established by customer.

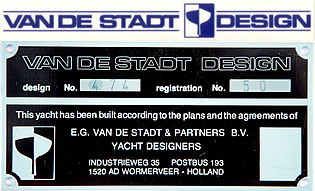

the yacht building licence
Sailing yacht "Madeira 44"
yacht building

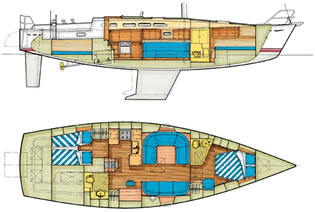

sailing yacht madeira 44

The 44 foot  "MADEIRA" is an ocean sailor for those who insist on safety, speed and comfort. The layout offers space to spend many years on board.
As with all designs by our office the construction and stability meet the highest requirements and prescriptions.

Length over all 13.50 m 44' 3"
Length waterline 11.80 m 38' 9"
Beam 4.20 m 13' 9"
Draft 2.20 m 7' 3"
Draft 1.95 m 6' 5"
Displ. (glass fibre wood core) 12.00 t 26500 lbs
Ballast (glass fibre wood core) 5.70 t 12500 lbs
Lift Keel version
Draft keel down 2.70 m 8' 10"
Draft keel up 1.25 m 4' 1"
Displacement (wood core) 11.50 t 25400 lbs
Sail area fractional rig 105 1130
Mast height above waterline 21.25 m 69' 9"
Headroom main cabin 2.00 m 6' 7"
Headroom forward 2.04 m 6' 8"
Headroom aft cabin 1.97 m 6' 6"
Cabins 2 2
Berths 7 7
Toilets 2 2
Fuel tanks 500 l 110 gall.
Water tanks 700 l 154 gall.
Sump tanks 200 l 44 gall.
Recommended engine power 48 kW 65 hp
СE Design category A  -

  • The 7/8 sail plan with its big full-batten main and high-aspect jib is easy to handle. The aerodynamic propulsion forces of this sail plan are better. The shrouds have been placed further apart, giving the mast better support. Under heavy loads the rig will be much calmer, which is important when you make long trips.
  • All versions of the keel are equally safe and stable.
  • sailing yacht Madeira 44

  • As an option a modern doghouse with fixed windows can be installed, giving shelter and security even under extreme weather conditions.
  • The spacious owner's cabin is forward with its own toilet/shower unit.
  • The living area in the cabin is large and comfortable, which is very important when making long trips.
  • The large windows, hatches and ventilation possibilities preclude that boxed up feeling.
  • The "wet" area is located close to the entrance, which means that you can reach the toilet, the chart table and the galley in wet clothing without wetting cushions and other items that are difficult to clean.
  • A cabin with a double bed aft. The recess makes getting in and out easier.
  • On starboard and aft there is ample storage space with large hatches. In the deep starboard storage space a generator, diving compressor or heater, etc. (world trip equipment) can be installed.
  • In the transom a folding swimming platform is integrated with storage space for the life raft.
  • The plans are available for round-bilge steel, aluminium and glass-fibre wood core. For the multi-chine construction, which is also available, the plans make use of the "quick assembly" method (QAM), known the world over and developed by Van de Stadt Design.
  • постройка яхт на яхтенная верфь алтаир
    Boat yard "Flagman MK ". Factory sections.
    The hulls produsing area Deck and coachroof building workshop The loft area
    yacht building sailing boat producing the loft
    проекты яхт Альтаир. постройка яхт
    Sailing yacht "Madeira 44". Building stages.

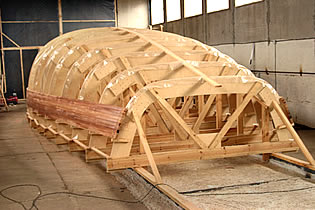

    ship-wayShip-way wooden platingThe mahogany plating hull platingThe plating has putted hull coatingGRP coating

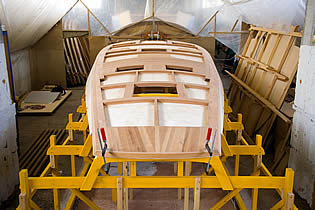

    hulls fillingThe hull's filling yacht overturningHull's overturning the yacht's hullUpright setting coachroofCoachroof producing
    coachroofThe coachroof details transom mouldThe transom's mould yacht buildingTransom putting sailing yacht producingThe balkheads installation
    Transom Water and fuel tanks Balkhead's loft Coachroof
    Engine installation Bulkheads mounting Coachroof putting палубаDeck putting
    Engine installation Deck and cocpit GRP treating Deck filling Interrior work
    постройка малых судов
    Sailing yacht "Madeira 44". 3-D furniture's models.
    furnitureSaloon saloon layoutSaloon, view from starboard saloon furnitureThe dinner table Saloon, view from galley
    forward cabinForward cabin aft cabinAft cabin headHead No.1 HeadHead No.2
